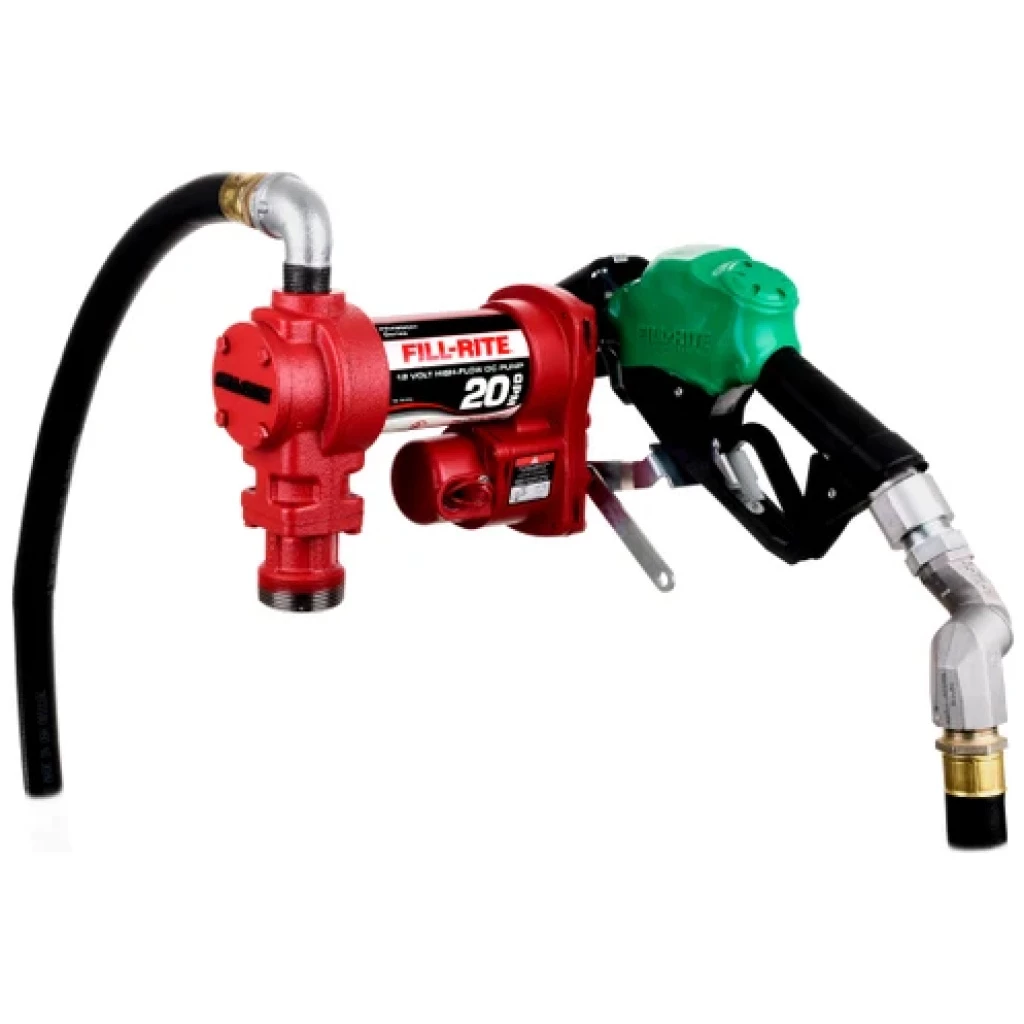

Fill-Rite 12V DC 20 GPM Fuel Transfer Pump W/ Nozzle & Swivel #FR4220HDSQ

The Fill-Rite FR4220HDSQ model with NPT fittings is a 12V DC heavy-duty, cast-iron, rotary vane fuel transfer pump that is capable of generating up to 20GPM It is designed to handle flammable liquids such as gasoline, diesel, biodiesel blends up to B20, ethanol blends up to E15, kerosene, and mineral spirits. The pump motor utilizes a low amp draw and is thermally protected to prevent overheating. The FR1420HDSQ model is available with a 1″ automatic (green) nozzle, 18′ fuel hose, swivel, 20″ – 34″ steel telescoping suction pipe, as well as other accessories. Made in the USA with a UL/cUL Listed Motor and limited lifetime warranty, this product is ideal for agriculture, construction, as well as any industry requiring mobile fuel transfer.

Fill-Rite’s 4200 Series of heavy-duty fuel transfer pumps feature simple installation with a rotatable junction box and are built to last with cast-iron construction.

FEATURES
The FR4220HDSQ model is a 12V DC, 20 GPM, heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a hose, swivel, nozzle, suction pipe, and installation components.

Cast-Iron Construction – durable cast-iron construction provides heavy-duty performance and withstands daily use in mobile tank applications
Easy Installation – adjustable electrical junction box rotates 180° for added flexibility while wiring and improved installation in tight spaces
Long Life – thermally-protected motor prevents overheating, ensuring your pump withstands the test of time
Equipment Safeguard – built-in strainer filters out particulates and prevents fuel contaminates from damaging your equipment
Reliable On/Off Switch – on/off switch lever features a cast metal stopping arm, preventing premature failure from repeated use
Limited Lifetime Warranty — we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your purchase and your business

PERFORMANCE
More Information
Max Flowrate 20
Motor Power 0.25
Power Source
Current Range 19amps
Thermal Protection Switch
Operating Temperature Range -17°F to 105°F
Self Priming
Suction Lift (ft.) 8
Dry Vacuum (in. Hg) 5
Max Discharge Pressure 16
Max Operating Pressure (PSI) 16
Strainer Mesh Size (micron) 20×20
Viscosity Range (cSt) 1 to 4

INCLUDED ACCESSORIES
Discharge Hose 1” X 18’ Hose with Static Ground Wire
Nozzle 1” Hi-Flow Automatic Diesel Nozzle (Green)
Swivel / Swivel Thread Type 1” Multi-Plane Swivel
Ground Wire Yes
Cable Length (ft.) 18
Cable Gauge 12
Cable Connection Bare Leads
Battery Quantity 1

DIMENSIONS
Assembled Product Height x Width x Depth (in.) N/A x N/A x 15.5
Assembled Product Weight (lbs.) 19.1
Package Height x Width x Depth (in.) 7 x N/A x N/A
Gross Weight (lbs.) 42.000
